Tracking Features:Total 864 channels: all-in-view, GPS L1/L2/L2C/L5, Galileo E1/E5A/E5B/AltBoc,
GLONASS L1/L2/L3, BeiDou B1/B2, QZSS L1/L2/L5, SBAS L1/L5, IRNSS L5, Advanced Multipath Reduction, Fast acquisition channels, High accuracy velocity measurement, Almost unlimited altitude and velocity (for authorized users)
Data Features:Up to 100 Hz update rate for real time position and raw data (code and carrier), 10 cm code phase and 1 mm carrier phase precision, Hardware Viterbi decoder, RTCM SC104 versions 2.x and 3.x Input/Output, NMEA 0183 versions 2.x and 3.0 Output, Code Differential Rover, Code Differential Base, Geoid and Magnetic Variation models, RAIM, Different DATUMs support, Output
Data Storage:Up to 16 GB of onboard non-removable memory for data storage
Input/Output:High speed RS232 serial port (up to 460.8 Kbps), Two high speed configurable RS232 or RS422 serial ports (up to 460.8 Kbps), Full speed USB 2.0 port (12 Mbps), CANopen interface, IRIG timecode output, One Event Marker input, One 1-PPSoutput synchronized to GPS,
GLONASS or UTC, MinPad interface: Four external LED drivers, ON/OFF control and External command inputs; Two Configurable Lodic-Level GPIO ports.

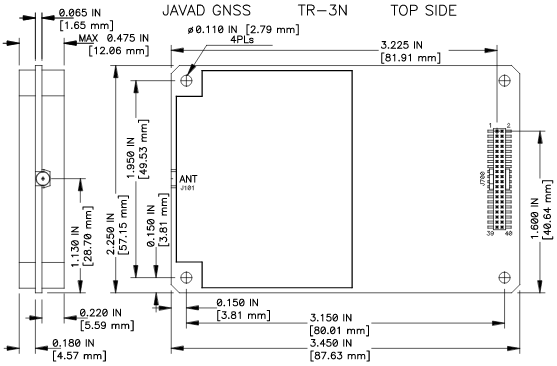

Specifications
Physical
Electrical
| Description | I/O | Signal Name | Pin # | Pin # | Signal Name | I/O | Description |
|---|
| Power Ground | | PGND | 1 | 2 | PGND | | Power Ground |
|---|
| +4.5 to +40 VDC Power Input | I | PWR_IN | 3 | 4 | PWR_IN | I | +4.5 to +40 VDC Power Input |
|---|
| Keep-Alive Power Input for Real-Time Clock (+4.5 to +40 VDC, 10µA typ) | I | KA_PWR | 5 | 6 | COMMSW# | I | Active Low Command Input (FN Button)*1 |
|---|
| Active Low input for ON/OFF switch*2 | I | ONOFFSW# | 7 | 8 | FUO | | Factory use only, must be left open |
|---|
| Active Low Reset input*3 | I | RESET_IN# | 9 | 10 | GND | | Signal Ground |
|---|
| Serial port A CTS line | I | CTSA | 11 | 12 | TXDA | O | Serial port A TXD line |
|---|
| Serial port A RTS line | O | RTSA | 13 | 14 | RXDA | I | Serial port A RXD line |
|---|
| Signal Ground | | GND | 15 | 16 | CTSB | I | Serial port B CTS line |
|---|
| Serial port B TXD line | O | TXDB | 17 | 18 | RTSB | O | Serial port B RTS line |
|---|
| Serial port B RXD line | I | RXDB | 19 | 20 | LED1_GRN | O | External LED Control*4 |
|---|
| External LED Control*4 | O | LED1_RED | 21 | 22 | LED2_GRN | O | External LED Control*4 |
|---|
| External LED Control*4 | O | LED2_RED | 23 | 24 | IRIG_OUT | O | IRIG port output line*5 |
|---|
| USB port Power Input line | I | USB_PWR | 25 | 26 | GND | | Signal Ground |
|---|
| USB port D+ line | I/O | USB_D+ | 27 | 28 | USB_D- | I/O | USB port D- line |
|---|
| 1 Puls Per Second output*6 | O | 1PPS | 29 | 30 | GND | | Signal Ground |
|---|
| Event input*7 | I | EVENT | 31 | 32 | GPIO0 | I/O | Configurable Logic-Level I/O 0 line |
|---|
| Configurable Logic-Level I/O 1 line | I/O | GPIO1 | 33 | 34 | GND | | Signal Ground |
|---|
| CAN port CAN-H line | I/O | CANH | 35 | 36 | CANL | I/O | CAN port CAN-L line |
|---|
| Serial Port D: RS232 RTS line or RS422 TX+ line | O | RTSD/TXD+ | 37 | 38 | TXDD/TXD- | O | Serial Port D: RS232 TXD line or RS422 TX- line |
|---|
| Serial Port D: RS232 CTS line or RS422 RX+ line | I | CTSD/RXD+ | 39 | 40 | RXDD/RXD- | I | Serial Port D: RS232 RXD line or RS422 RX- line |
|---|
*1 Active Low input from the FN button of the MinPad. Internal pull-up 10 kOhm to +3V. Must be left open if not used.
*2 Active Low input which is equivalent to ON/OFF button of the MinPad. Internal pull-up 10 kOhm to +3V.
For the rev.1 to 4 the pin must be connected to GND permanently if the board is required to turn on automatically any time external power is applied to pins 3 and/or 4.
For the rev.5 and later after abnormal turn off because of external power filure, the boards turn on autmatically when external power is restored.
*3 Connect to ground to activate. Internal pull-up 2.2 kOhm to +3V.
*4 LED1_GRN and LED1_RED are used to control the STAT LED of the MinPad. The output is a +3V driver in series with 100 Ohm resistor for each LED. LED should be with common cathode.
*5 AM sine-wave signal; 2.1Vp-p (Mark), 0.7Vp-p (Space).
*6 Voh > 2.0V (typ) at 50 Ohm load.
*7 Internal pull-up 5 kOhm to +3V
Digital connector: Micro Header, 2x20 pos, 0.050″ pitch. Samtec p/n FTSH-120-01-L-DV-K-A.
RF connector: MMCX Jack, edge mount. Amphenol p/n 908-22100. The central pin of the connector is power supply for LNA, +5 VDC with sourced current up to 0.1A.
Environmental
Operating Temperature: -40°C to +75°C
Storage Temperature: -40°C to +85°C
High shock and vibration resistance
